Standard gas springs deliver incredibly smooth motion. They unfortunately lack precise mid-stroke positioning. Sometimes you need a firm, unmoving stop. Specific industrial and medical applications simply cannot tolerate bounce. Heavy loads shifting unexpectedly create massive safety risks. When displacement becomes dangerous, engineers must evaluate rigid locking mechanisms. Finding the perfect balance between adjustability and solid support prevents catastrophic mechanical failure.
Enter the controllable gas spring. Industry veterans often call it a blockable gas strut. This device utilizes an internal valve combined with physical oil and gas separation. This brilliant design physically locks the piston rod in any position you choose. It holds tremendous static loads securely. It offers the flexibility of a standard spring alongside the rigidity of a solid steel rod.
This article provides procurement and engineering teams a comprehensive technical framework. You will learn to properly evaluate locking types and critical sizing metrics. We explore temperature variances and strict compliance standards. This guide ultimately helps you specify the precise strut for safety-critical applications.
Load Multiplication: Rigid locking struts can safely hold static loads up to 3.6x to 5.8x their nominal extension force (F1), depending on tube diameter.
Directional Rigidity: Selection depends entirely on load direction—struts must be specified as rigid in extension (pull), rigid in compression (push), or absolutely rigid (both).
Environmental Variance: Actuation force changes by approximately 3.3% for every 10°C deviation from standard testing temperatures (20°C).
Maintenance Reality: High-quality units are permanently lubricated and sealed; applying external grease to the piston rod accelerates seal failure.
How does a Controllable Gas Strut actually achieve solid rigidity? It differs significantly from a standard pneumatic spring. Standard models mix pressurized nitrogen gas and lubricating oil inside one open tube. Rigid locking models physically separate these elements. They use a critical internal floating piston. This floating component creates two distinct and isolated chambers. One chamber holds pressurized nitrogen gas to provide pushing force. The second chamber contains pure oil.
The core locking principle relies heavily on a specialized internal valve. This internal valve remains normally closed at all times. When the release pin remains unactuated, the valve seals shut completely. Because the pure oil sits trapped and physically incompressible, it creates a solid mechanical block. The piston rod simply cannot move. You achieve an instant, rigid stop anywhere along the stroke.
Engineers must pay close attention to actuation tolerances. Standard release travel is surprisingly short. The exact distance you must push the pin to open the valve typically ranges between 2.5mm and 3.5mm. Some specialized ultra-short variants require under 0.5mm of travel. This minimal travel allows designers to implement highly sensitive, ergonomic finger triggers on handles and control pads.
Locking behavior depends entirely on internal oil placement relative to the main piston. You must match the directional rigidity to your real-world load. Engineers categorize these into three distinct functional types.
These models become completely rigid against a pulling load. Imagine someone yanking forcefully upward on a locked seat. It will not budge. However, it allows a very slight yield when subjected to an overload pushing force. This tiny yield acts as a protective mechanical buffer. Hospital bed backrests utilize this exact type. Airplane passenger seats also rely on it heavily. A heavy passenger abruptly pushing backward will not snap the mechanical frame. The strut yields slightly. Yet, upward pulls remain firmly and absolutely locked.
These units sit completely rigid against downward pushing or compression loads. Downward force yields absolute zero displacement. They do, conversely, allow slight give under upward pulling loads. You see these utilized extensively in operating tables and massage tables. Heavy-duty adjustable desks also require them. Downward weight from heavy equipment must be supported flawlessly. Zero bounce is entirely non-negotiable here. A surgeon leaning on a table cannot experience sudden dips.
Sometimes your application demands zero displacement under both push and pull forces simultaneously. Absolutely rigid models use a highly specialized dual-chamber blockable design. They trap incompressible oil on both sides of the main valved piston. Safety bollards demand this level of security. Security barriers and heavy industrial robotic arms also require absolute static positioning. They tolerate zero accidental movement in any direction.
| Locking Type | Pull Resistance (Extension) | Push Resistance (Compression) | Common Use Cases |
|---|---|---|---|
| Rigid in Extension | Absolute Rigidity | Slight Yield (Buffer) | Hospital beds, airplane seats |
| Rigid in Compression | Slight Yield | Absolute Rigidity | Operating tables, massage desks |
| Absolutely Rigid | Absolute Rigidity | Absolute Rigidity | Safety bollards, heavy machinery |
Sizing a Controllable Gas Spring requires mathematical precision. You cannot guess the dimensions. You must calculate the exact applied loads. Tube-to-piston rod cross-section ratios play a massive role during specification. They strictly determine the maximum holding capacity before the lock fails.
Engineers formally call this the F1 multiplier effect. The F1 force represents the nominal outward extension power. Rigid locking models can hold static loads much higher than their standard F1 rating. A standard 22mm tube (HY1 style) might comfortably support 3.6 times its F1 force. This ratio translates to roughly 6500 N of static holding capacity. A thicker 28mm tube (HY3 style) can support an impressive 5.8 times its F1 force. This pushes the safe operating limit to a massive 10,000 N.
Temperature changes drastically affect internal pressure performance. Nitrogen gas naturally expands when heated. It subsequently compresses when cooled. Standard factory base testing happens at 20±2 °C. Engineering calculations should follow a highly reliable rule of thumb. Internal actuation force shifts by roughly 3.3% for every 10°C change in ambient temperature. You must account for this shift in extreme environments.
You must specify strict temperature limits based on your operating environment. Industry standards group these into specific classes:
Cold Variants: Engineered with specialized seals to function safely down to -45°C.
Standard Variants: Designed to operate reliably between -30°C and +80°C for everyday use.
High-Heat Variants: Utilize extreme-duty components to withstand environments up to +200°C.
How do end-users actually operate these rigid devices? Actuation methods vary significantly based on ergonomics. You must choose the right release system for your specific user interface.
Direct lever actuation: Uses a simple push-button or metal paddle. It mounts directly onto the exposed pin for local control.

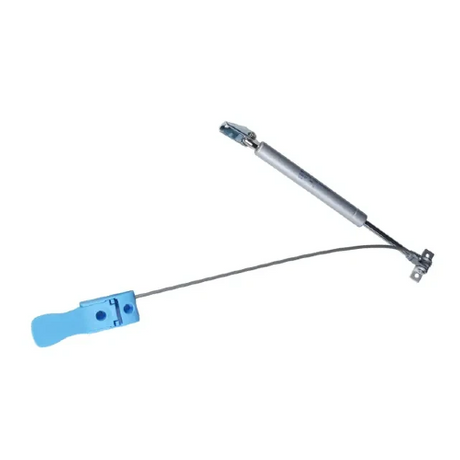

Bowden cable systems: Allow remote mechanical triggering. They look exactly like bicycle brake cables. They provide highly ergonomic operation from distant handle grips.
Hydraulic release mechanisms: Ideal for heavily routed, complex machine structures. They push fluid through flexible tubes to actuate the pin remotely around tight corners.
Safety overrides are absolutely crucial for aerospace and medical fields. Tensile overload valves offer an essential emergency manual override feature. Flight attendants use this exact mechanism on commercial airplane seats. They can forcefully pull a reclined passenger seat upright during emergencies. The internal overload valve yields safely under this extreme sudden force. It entirely bypasses the need to press the release pin. This clever redundancy prevents permanent strut damage during rapid manual resets.
Installation best practices dictate long-term reliability. Proper mounting radically extends product life. Standard units usually lack specialized inner oil routing systems. You should always install them with the release pin pointing straight downward. This orientation keeps internal lubricating oil resting directly against the critical pressure seals. It also prevents gravity from pulling dust, dirt, and moisture directly into the sensitive valve mechanism.
Procuring reliable hydraulic components involves strict vendor vetting. You must clearly understand standard lifecycle expectations. Standard controllable models should easily handle heavy daily use. Quality units are factory-rated for 50,000 to 100,000 double strokes. This rating strictly assumes normal, clean operating conditions.
Maintenance constraints frequently surprise uneducated buyers. You must strictly follow the "zero-maintenance" rule. These devices arrive fully permanently sealed. They contain incredibly precise internal lubrication formulas. Procurement teams should immediately reject vendors requiring routine manual relubrication. Adding external oil or grease to the piston rod is a fatal mistake. External grease traps abrasive environmental dust. This gritty paste rapidly degrades the sensitive internal seals.
Industry-specific compliance forms your final procurement hurdle. Different sectors demand unique rigorous certifications.
Medical & Food & Beverage: Always check for FDA-approved food-grade oil inside the cylinder. You must also specify V4A stainless steel external housings. These high-grade metals resist harsh chemical cleanings and washdowns.
General Manufacturing: Ensure full RoHS environmental compliance. This guarantee ensures no hazardous heavy metals exist within the outer coatings or internal valve components.
Vendor selection requires clear and repeatable shortlisting logic. Base your final engineering decisions on four sequential steps. First, identify the critical load direction to determine if you need rigid protection against push or pull forces. Second, calculate the maximum dynamic force and select the required F1 multiplier based on tube diameter. Third, select the appropriate release system, choosing between a local direct lever or a remote Bowden cable. Finally, verify all environmental ratings against local compliance standards like RoHS or FDA approvals.
Action-oriented next steps will secure your assembly project. Contact your chosen manufacturer directly. We recommend requesting 3D CAD models first. Verify the physical dimensions within your digital assembly software. Order a physical prototype sample next. Perform thermal and dynamic load testing in the actual physical housing environment. Real-world validation consistently prevents exceedingly expensive field failures later.
A: A flexible locking spring locks via compressed gas. This design causes a slight "bouncy" or elastic feel when locked under load. A rigid locking spring utilizes physically separated pure oil. Because oil remains fundamentally incompressible, it locks solidly with zero give or bounce in the specified direction.
A: Unless explicitly engineered with an internal positional-independent oil chamber, most standard rigid springs require specific mounting. You should consistently mount them with the rod and pin facing downward. This downward orientation ensures proper oil sealing and provides critical dust protection for the valve.
A: No. They are entirely self-contained systems. Manufacturers pre-lubricate them with highly precise internal gas and oil mixtures. Applying external grease to the exposed rod is dangerous. It will aggressively attract abrasive particulates. This resulting dirt paste will prematurely destroy the pressure seal.
A: You must measure three primary dimensions accurately. First, measure the fully extended length from eyelet center to eyelet center. Second, measure the total exposed stroke length. Finally, locate the required F1 force. This crucial number is typically stamped directly on the cylinder body in Newtons.
