Gas springs—also called gas struts or lift supports—are small but mighty tools that make everyday tasks easier. They help you lift heavy tailgates, lower storage bed lids, and smoothly open overhead cabinets. But here’s the catch: if they’re not installed correctly, they won’t perform well and may fail prematurely.
This guide walks you through every step of attaching a gas spring, from choosing the right one to testing it after installation. Whether you’re working on a caravan bed, a machine cover, or a pickup truck hood, you’ll learn how to mount your gas spring safely and effectively.

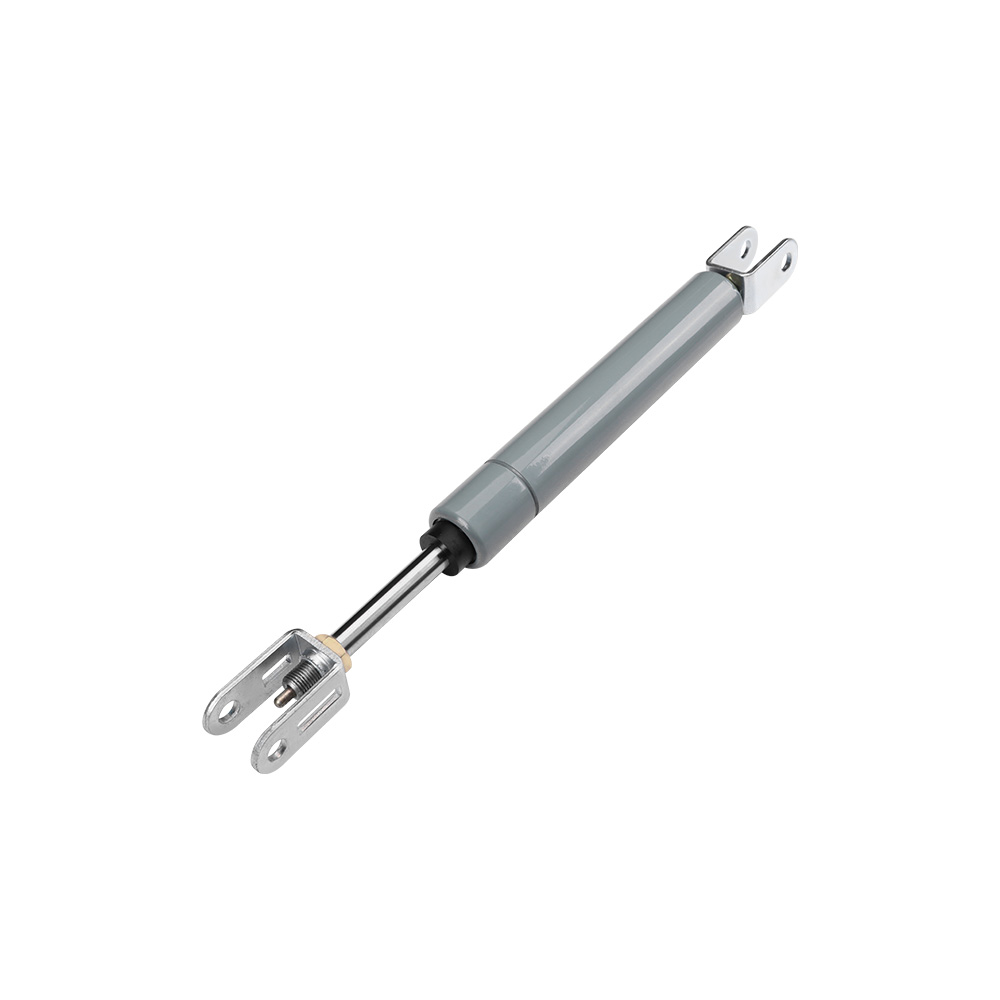

A gas spring uses pressurized nitrogen gas to create force between a piston rod and a cylinder. When the rod extends or compresses, the gas pressure assists in lifting, lowering, or balancing a load. The result? Smooth, controlled motion with minimal effort.
Proper installation is essential because:
It ensures the gas spring operates smoothly and lasts longer.
It prevents damage to the seal, piston rod, and internal components.
It keeps your application safe by reducing the risk of sudden movement or failure.
You’ll find gas springs in a surprising number of places:
Automotive applications: car hoods, trunks, tailgates, and camper hatches
Furniture: overhead kitchen cabinets, storage beds, recliners, and adjustable desks
Industrial equipment: machine covers, tool compartments, and access hatches
Each application has different requirements, which is why choosing and installing the right gas spring matters so much.
Before you can attach a gas spring, you need to make sure you’re using the right one. The wrong size, stroke, or Newton force can lead to poor performance or even damage.
Here’s what to consider:
Load weight: How heavy is the lid, door, or panel?
Opening angle: How far does the lid need to open?
Mounting geometry: Where will the gas spring attach on both the fixed and moving parts?
Many manufacturers offer online configurators or calculator tools that help you determine the correct specifications. Simply enter your application’s dimensions and weight, and the tool will recommend a suitable gas spring. Be sure to record the measuring points from the tool—you’ll need them during installation.
Having the right tools on hand makes installation faster and safer. Here’s what you’ll need:
Gas spring(s)
Mounting brackets or ball studs
Stainless-steel screws or self-tapping bolts
Screwdriver or drill
Pencil and tape measure
Optional: flashlight, safety gloves
Gas springs are under pressure, so it’s important to handle them with care:
Work with a partner when installing gas springs on heavy or spring-loaded lids.
Keep your hands and face clear of moving parts.
Never puncture or manually compress the gas spring.
Make sure the lid or panel is safely supported before you begin.
One of the most important rules of gas spring installation is this: always mount the rod end facing down. Why? Inside every gas spring is a small amount of oil. This oil lubricates the seal and piston rod, preventing wear and providing smooth damping during extension. When the rod is mounted downward, the oil stays in contact with the seal and prevents it from drying out or cracking. Mounting the gas spring upside down (rod up) causes premature seal wear and can lead to failure.
Use the measurements you recorded earlier to mark the exact screw locations on your application. Accuracy is critical here—if the mounting points are off, the gas spring may not align properly, which can cause side loading and damage. Mark a small cross or dot at each point to guide your drilling. Double-check your measurements before moving on.
Drill pilot holes at the marked points. Then, attach the ball studs or mounting brackets using stainless-steel self-tapping screws. Make sure the brackets are level and aligned. Misaligned hardware puts uneven stress on the piston rod, which can shorten the gas spring’s lifespan.
Extend the gas spring slightly and push each end socket onto the ball stud until you hear a “click.” The click confirms that the fitting is securely in place. Important: Never use tools like pliers or a hammer to force the connection. Hand pressure is enough. Using excessive force can damage the ball sockets or clips. Before finishing, double-check that the rod end is facing down.
Open and close the lid slowly to confirm smooth motion. Listen for any clicks, squeaks, or resistance that might indicate misalignment. If you’re using an adjustable-pressure gas spring, now is the time to fine-tune the pressure using the integrated valve. Simply press the adjustment knob to release small amounts of nitrogen gas until the force feels right.
Even a small mistake can affect performance or shorten the life of your gas spring. Here are the most common errors and how to avoid them:
Mounting upside-down (rod up): This causes seal wear and premature failure. Always mount rod-down.
Incorrect alignment: If the mounting points aren’t aligned, the gas spring will experience side-load damage to the piston and seal.
Using the wrong force or stroke: If the gas spring is too weak, the lid won’t lift properly. If it’s too strong, the lid may slam shut.
Forgetting to measure accurately: Misaligned holes lead to poor motion control and uneven stress on the gas spring.
Using non-stainless hardware: Cheap screws corrode over time, weakening the connection and increasing the risk of detachment.
Forcing the end fittings: Hammering or using vice grips damages the ball sockets or clips.
Can I install a gas spring upside down?
No. Always install the rod end facing down for proper lubrication and damping.
How do I know what size or force my gas spring should be?
Use the manufacturer’s calculator tool or consult the supplier with your lid weight, dimensions, and opening angle.
Do I need special tools to attach a gas spring?
No, basic tools are all you need: a screwdriver, drill, tape measure, and pencil.
What if my gas spring opens too fast or won’t hold the lid?
Check the alignment and pressure. If you have an adjustable gas spring, fine-tune the pressure using the integrated valve.
Can I reuse old brackets or ball joints?
Only if they’re undamaged. Worn hardware can cause misalignment or detachment.
Attaching a gas spring isn’t complicated, but it does require attention to detail. Mount the rod end down, measure carefully, use quality hardware, and test the movement before putting your application into full use. Following these steps protects your equipment, ensures smooth and safe operation, and extends the life of your gas spring. For complex or high-load systems, don’t hesitate to consult a professional or reach out to your gas spring supplier for configuration support.
