Modern engineering demands more than just basic lifting power. We have shifted from standard lift-assist mechanisms to advanced variants. These advanced models require precise, multi-positional locking capabilities across multiple angles. Selecting the wrong locking mechanism creates severe design stakes for any product team. Choosing a gas-based rather than oil-based lock can cause immediate ergonomic failure. It might introduce critical safety hazards in heavy medical or industrial applications. It can also accelerate component wear and tear, leading to premature field failures.
You need a clear technical evaluation framework to succeed in your design phase. We will explore how to compare these dynamic mechanisms effectively. You will learn to align them to specific application requirements based on load, ergonomics, and environment. By following this comprehensive guide, you can confidently mitigate deployment risks and optimize product performance.
Controllable gas springs are categorized primarily by their locking behavior: elastic (gas-cushioned) or rigid (oil-blocked in either tension or compression).
Rigid locking in compression is essential for high-load, safety-critical applications (e.g., hospital beds), while elastic locking suits ergonomic seating.
An adjustable gas spring offers post-installation force calibration, reducing initial prototyping risks.
Standard gas struts only provide end-to-end motion. They push a load fully open or let it close completely. Many modern applications demand much more nuanced control. Users often need variable positioning midway through a stroke to adjust height or angle. They require hands-free holding for heavy protective covers or workstation hoods. Sometimes they need emergency locking during sudden power failures. This is where a Controllable Gas Spring becomes critical for operational success. It gives operators ultimate authority over the physical movement.
Engineers must evaluate three main success criteria for selection:
Ergonomics: The actuation must feel exceptionally smooth. Operators should apply minimal manual force to trigger the release pin. This ensures comfortable daily use without causing physical fatigue.
Safety & Compliance: The lock must act fail-safe under the maximum stated load capacity. The cylinder must never deflect or bend under heavy operational stress.
Integration: The unit must integrate easily into your broader mechanical layout. It needs strict compatibility alongside existing actuation systems. Common systems include hand levers, standard push-buttons, or flexible Bowden cables.
Different locking behaviors dictate application suitability. You must select the precise internal mechanism for your project based on how it reacts to physical force.
Mechanism: This design uses compressed nitrogen gas on both sides of the internal piston. The gas balances the forces equally when you close the internal valve.
Outcome: It provides a slight bounce or cushioning effect when securely locked. It feels flexible rather than entirely stiff, naturally absorbing sudden impacts.
Best For: You should use these in ergonomic applications where human comfort matters most. Shock absorption is highly beneficial here to prevent sudden jarring motions. Prime examples include passenger seating on public transit and high-end ergonomic office chairs.
Mechanism: This variant utilizes a dedicated oil chamber instead of purely gas. The non-compressible fluid blocks the piston from moving inward when locked. Oil does not compress under pressure like gas does.
Outcome: You get absolutely no yield when pushing down on the application. The stroke halts completely, acting exactly like a solid metal bar.
Best For: High-stress medical and industrial equipment rely heavily on these units. Hospital beds, physical therapy tables, and operating tables use them continuously. Absolute stability serves as a strict safety requirement in these critical fields.
Mechanism: An internal oil chamber prevents the piston from extending outward when locked. The fluid stops the rod from being pulled out of the cylinder.
Outcome: It withstands heavy pulling forces without yielding or drifting. It locks securely against high-tension loads.
Best For: Specify this type for tilt-adjustable steering columns in heavy machinery. Heavy canopy doors on construction vehicles also benefit immensely from it. Specific aerospace applications depend on this exact resistance to maintain flight console positions.
Mechanism: It features a built-in bleed valve at the base of the cylinder. Engineers can strategically release gas to dial-in the exact force required after installation.
Outcome: This significantly accelerates early-stage prototyping. You drastically reduce the need to order multiple costly test units. Note that force can only be reduced through venting. You cannot increase the pressure once vented without factory equipment. This makes an Adjustable Gas Spring highly valuable during early design phases where structural weights might still fluctuate.
Selecting the perfect unit requires careful calculation. You must weigh physical dimensions against mechanical demands accurately.
You must calculate the required extended length and force in Newtons. Base this calculation strictly on the exact center of gravity. Determine the precise weight of the moving mass. As the panel moves through its arc, the required leverage changes constantly. A longer stroke often requires a higher starting force to compensate for leverage changes at different angles. Use proper 3D modeling software to simulate these dynamic load paths.

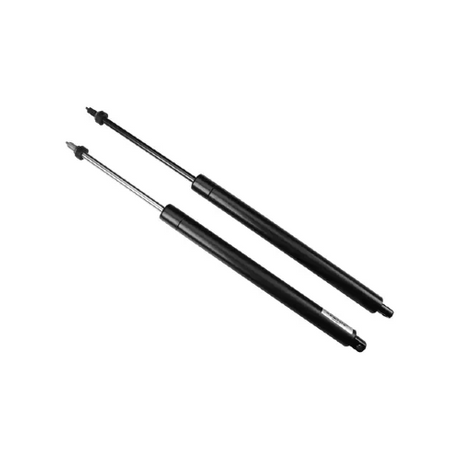

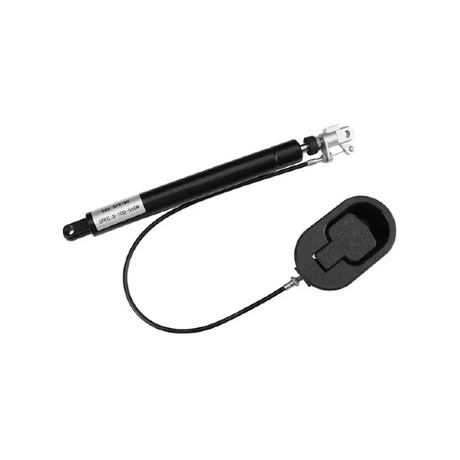

You need to evaluate the mechanical trade-offs between different release types. Direct mechanical release through levers offers robust reliability. Remote release through Bowden cables provides maximum ergonomic flexibility for the end user. However, you must specifically address cable stretch over long periods of time. A stretched cable might fail to depress the release pin fully. Routing complexities can also introduce severe friction into the remote release line. Keep cable runs as short and straight as mechanically possible.
Assess the difference in force between fully extended and fully compressed states. As the rod enters the cylinder, it displaces internal volume. This displacement naturally increases the internal gas pressure. A lower progression ratio ensures user-friendly operation across the entire stroke. It prevents the mechanism from feeling too stiff at the end of its travel path. You want a smooth, linear feel from start to finish.
Corrosion resistance completely defines system longevity. Standard steel works exceptionally well for dry, controlled indoor environments. You must upgrade to 316L Stainless Steel for demanding external sectors. Marine environments, sterile medical facilities, or harsh chemical processing plants require this material upgrade. It resists caustic washdowns and salt spray effectively.
To visualize these environmental trade-offs, review this material summary chart:
| Requirement | Standard Steel | 316L Stainless Steel |
|---|---|---|
| Ideal Environment | Indoor, dry climates | Marine, Medical, Chemical |
| Cost Impact | Baseline | Premium |
| Corrosion Resistance | Moderate (Painted/Coated) | Maximum (Inherent) |
Keep these best practices in mind during your evaluation:
Always calculate force requirements based on the worst-case weight scenario.
Route release cables using wide, sweeping curves instead of sharp 90-degree bends.
Match your material grade to the actual field deployment environment, not just laboratory conditions.
Even perfect designs fail if deployed incorrectly. You must account for real-world environmental stressors.
Extreme temperatures impact internal nitrogen gas pressure predictably. We see a roughly 3.4% force change per 10°C of temperature swing. A unit perfectly tuned at 20°C in a factory might fail to lift a heavy load at -10°C outdoors. Conversely, it might become too powerful and difficult to close at 40°C. You require climate-specific calibration for outdoor or aerospace applications.
Premature seal failure destroys system reliability. Identify the root causes early in your design phase. Off-axis loading, or side loading, bends the rod slightly during travel. This microscopic bend tears the delicate internal seals. Environmental contaminants like construction dust or manufacturing abrasives easily score the piston rod. A scratched rod will shred the internal seal during the very next stroke, causing immediate pressure loss.
You must mount specific controllable models in a rod-down orientation. Gravity naturally pulls the internal oil toward the main seal assembly. This constant contact keeps internal seals perfectly lubricated over years of continuous use. It also ensures proper hydraulic damping at the very end of the extension stroke. Horizontal mounting dries out the seal quickly, leading to rapid gas leakage.
Differentiate strictly between theoretical lab cycle life and real-world field performance. Testing labs operate under perfect, sterile, and temperature-controlled conditions. Real-world applications face highly dynamic loads, lateral vibrations, and extreme temperature shifts. Always over-engineer your cycle life expectations by at least 20 percent to account for end-user abuse.
Moving from CAD design to final production requires smart procurement logic. Avoid common pitfalls by planning your prototype stages carefully.
Starting with a variable-force model is the single most cost-effective path forward. You can determine exact force requirements physically on the actual built assembly. Vent small, controlled amounts of gas until the motion feels absolutely perfect to the operator. You do this hands-on testing before committing to massive fixed-force production runs.
Evaluate your manufacturing supply chain timeline ruthlessly. Specify custom internal valving or unique stroke lengths only when strictly necessary for user safety. Designing your core product around standard, off-the-shelf catalog dimensions drastically reduces order lead times. It also significantly lowers replacement costs down the line for your maintenance teams.
Hold your manufacturing partner to exceptionally high engineering standards. Ensure they provide full 3D CAD models for easy digital integration. Demand dedicated application engineering support during the critical early design phase. Secure highly transparent warranty terms specifically covering internal seal integrity. A superior vendor partners actively in your long-term commercial success.
Match the locking type directly to your specific safety and ergonomic needs. Use elastic locking for comfort and rigid locking for heavy, stable loads.
Engage an application engineer early in the CAD phase. Calculating exact force, stroke, and mounting geometry upfront prevents costly redesigns. Do not wait to retrofit a mechanism into a finished product.
Account for environmental factors immediately. Temperature swings alter pressure, and airborne dust accelerates seal degradation.
Start your testing phase efficiently. Request a technical consultation, download a sizing calculator, or order a variable-force prototype for hands-on calibration today.
A: A controllable model features an internal mechanism for positional locking anywhere mid-stroke. You can start and stop the movement at will using a release pin. An adjustable model typically refers to a unit featuring a bleed valve. This valve allows you to bleed gas to permanently change the Newton force during installation.
A: No, it cannot safely handle severe overload. The internal valve has strict mechanical limits. If you exceed the stated maximum forces, you risk total seal blowout or cylinder deformation. Always adhere strictly to the manufacturer’s maximum load ratings to ensure operator safety.
A: Use a simple rule-of-thumb. Look at the direction of the primary opposing force when the application is locked. If the load pushes down heavily on the mechanism, you need rigid locking in compression. If the load pulls forcefully outward, specify tension locking.
A: No, they are not field-repairable. They are highly pressurized, permanently sealed units. Attempting to open or repair them poses a severe physical safety hazard. If pressure is lost or seals degrade, you must replace the entire unit safely according to standard maintenance protocols.
