Designing adjustable mechanisms demands robust load control. Engineers face a continuous challenge across various industries. You must safely and reliably hold variable loads in precise positions. Furthermore, you must achieve this exact positioning without continuous power consumption. Relying on continuous electricity introduces frustrating failure risks and unnecessary design bulk. You can solve this fundamental structural problem using a Controllable Gas Spring. We define this core component as a highly efficient hydraulic-pneumatic energy storage device. It features a specialized internal valve system. This clever mechanism allows operators to halt the stroke at any exact point along its path. This guide provides a clear framework for engineers and procurement teams. You will learn how to properly evaluate and specify the correct units. We will explore how to source mechanisms tailored to your exact application needs. By the end, you will confidently navigate rigid versus elastic systems. You will understand internal fluid mechanics. You will also ensure maximum field safety for your ultimate end users.

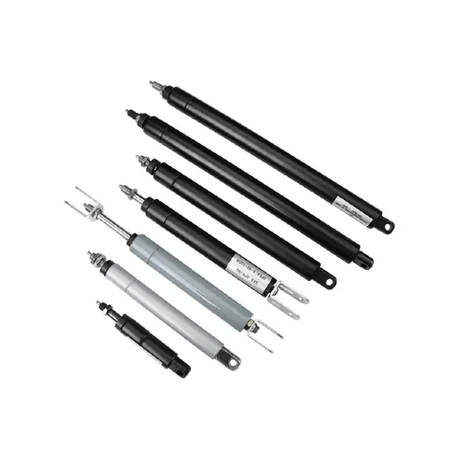

Controllable gas springs (often referred to as lockable gas springs) utilize a release pin and internal valve system to stop and hold loads securely at any point along their stroke.
Applications dictate internal mechanics: elastic locking provides shock absorption (e.g., seating), while rigid locking provides absolute zero-displacement hold (e.g., medical beds).
They serve as a highly cost-effective, zero-maintenance, and power-free alternative to electric motorized actuator systems.
Safe specification requires verifying pure nitrogen usage (to prevent combustion risks associated with compressed oxygen/air) and precisely calculating the required stroke, force, and dimensions.
Engineers often marvel at fluid dynamics. How does a compact cylinder freeze movement instantly on demand? The secret lies entirely inside the hollow piston rod. Understanding this internal architecture helps you specify better components.
The hollow rod houses an integrated release pin. This pin connects directly to a precision piston valve. When you press this external pin, it pushes the internal valve open. This opening allows internal gas or hydraulic oil to flow freely. The piston can then glide smoothly through the main cylinder body. Once you release the actuation pin, the valve snaps shut instantly. It seals the fluid path completely. This action locks the piston securely in its current position.
You might wonder how a tiny pin manages massive structural loads. The design relies heavily on pressure differentials. The internal gas pressure exerts outward force evenly across the cylinder walls. The physical surface area differs between the top and bottom of the piston. This area difference creates the natural pushing force. A relatively minor actuation force breaches the valve seal. You can trigger it via a simple hand lever or a remote Bowden cable. This clever mechanical leverage lets you control hundreds of pounds of structural force effortlessly.
Quality controllable units operate as completely sealed environments. Manufacturers pressurize them strictly with inert nitrogen during final production. Once sealed, they require absolutely no external power sources. You never need separate hydraulic pumps. You also avoid messy ongoing fluid maintenance. The sealed architecture guarantees predictable performance. These components operate reliably over tens of thousands of cycles. They provide true set-and-forget functionality for industrial designers.
Different industrial sectors demand distinct positioning capabilities. A one-size-fits-all approach fails in mechanical engineering. Let us explore how various fields deploy these versatile components.
Medical professionals rely heavily on absolute stability. Sudden equipment movements endanger patient safety. You will find these specialized components positioning heavy surgical tables. They also control the backrests of adjustable hospital beds. Complex wheelchair tilt mechanisms depend on a Lockable Gas Spring. A sudden slip during a critical procedure could prove catastrophic. Therefore, precise and rigid holding capabilities remain non-negotiable in healthcare environments.
Commercial furniture design prioritizes daily user comfort. Smooth operation defines a quality ergonomic product. Heavy-duty office seating uses these springs for variable backrest adjustments. Modern standing desks utilize them for fluid height changes. They allow office workers to customize their physical posture effortlessly. Good ergonomics prevent repetitive strain injuries. The elastic locking variants provide an essential cushioning effect when users sit down abruptly.
The aerospace and heavy industrial sectors value extreme reliability. Aviation designers use these cylinders for adjustable passenger seating. They also secure overhead luggage bins. Heavy equipment manufacturers install them on large exterior access panels. Maintenance crews rely on them to hold heavy steel hatches open safely. Inherent vibration resistance matters greatly here. The secure locking mechanism prevents accidental closures during intense machinery operation or flight turbulence.
Marine environments present highly unique engineering challenges. Boats require custom storage solutions beneath heavy deck lids. Fluctuating ocean waves demand a highly reliable mechanical hold. Equipment must not slam shut unexpectedly. Manufacturers often specify upgraded stainless steel options for marine use. These marine-grade variants resist severe saltwater corrosion. They withstand harsh oceanic exposure year after year while maintaining perfect valve integrity.
How do you choose the right locking behavior? The answer depends entirely on the internal cylinder design. You must decide whether the locking valve sits submerged in gas or in oil.
Engineers choose elastic designs for specific comfort reasons. This mechanism operates primarily on pneumatic principles.
Mechanism: In an elastic configuration, the piston locking valve resides entirely within the compressed nitrogen gas chamber. There is no oil separation barrier.
Outcome: Gas always remains naturally compressible. When the mechanism locks and subsequently takes on a heavy load, the internal nitrogen compresses slightly. This physical trait provides a dampened, springy cushioning effect. It absorbs sudden mechanical impacts perfectly. Designers heavily favor this specific style for human-bearing loads. Office seating and passenger transport chairs represent ideal use cases.
Some applications cannot tolerate any physical give. You must eliminate all bouncing or springiness. This requires a shift from pneumatic to hydraulic principles.
Mechanism: Rigid designs employ a significantly more complex internal architecture. The cylinder features dual independent chambers. A dedicated floating piston separates these two zones. The locking valve operates exclusively within an incompressible hydraulic oil zone.
Outcome: Liquids simply do not compress like gases. When the internal valve closes, the trapped oil column creates a solid mechanical wall. You achieve absolute zero displacement under heavy loads.
Directional Variants: We categorize rigid systems by their directional holding strength. Tension rigid units lock firmly against pulling forces. Compression rigid units lock aggressively against pushing forces. You select the appropriate variant based on where the internal oil column sits relative to the main piston.
| Locking Type | Internal Medium at Valve | Displacement Under Load | Best Application Match |
|---|---|---|---|
| Elastic Locking | Nitrogen Gas | Slight (Springy / Cushioned) | Office Chairs, Passenger Seating |
| Rigid in Compression | Hydraulic Oil (Push Side) | Zero Displacement | Medical Beds, Heavy Industrial Hatches |
| Rigid in Tension | Hydraulic Oil (Pull Side) | Zero Displacement | Wheelchair Tilt Mechanisms, Patient Lifts |
Engineers often debate between pneumatic solutions and electric motors. Both technologies offer unique advantages. However, pneumatic components frequently win out in practical product design. Let us examine the practical physical differences.
Physical space constraints usually dictate early design choices. You rarely have unlimited room inside a product housing. Gas cylinders offer incredible compactness. They fit seamlessly into extremely tight mechanical arcs. Conversely, bulky electric motors require substantial extra clearance. Motors need large exterior housings to dissipate heat. You also have to route complex electrical wiring harnesses through moving joints. Pneumatic units avoid all this clutter. They provide a sleek, self-contained footprint. This compactness suits modern minimalist industrial designs perfectly.
Predictability matters immensely in field environments. End users hate sudden surprises. Motorized systems face abrupt electrical failures. A burned-out circuit board immediately paralyzes the entire mechanism. A severed wire creates an instant dead stop. Sealed hydraulic-pneumatic systems behave very differently. They fail gradually over an extended period. Constant usage eventually causes normal microscopic seal wear. You will notice a slow loss of holding force long before a catastrophic drop occurs. This gradual degradation offers far greater predictability. Maintenance teams can easily replace aging units during routine service intervals. They fix the problem before total failure impacts the end user.
Buying the wrong component wastes valuable development time. Incorrect specifications also create severe physical safety hazards. Follow these logical steps to specify your exact needs accurately.
Defining Dimensional Constraints: You must map out the exact physical boundaries of your mechanical assembly. Start by calculating the necessary Extended Length. Next, determine the required Compressed Length. The mathematical difference between these two measurements yields your Total Stroke Distance. Accurate dimensional constraints prevent the internal piston from bottoming out prematurely. Premature bottoming destroys the internal seals.
Calculating Force and Progression: A seamless user experience depends entirely on accurate force calculations. Evaluate the required P1 force carefully. This metric represents the starting resistance when the cylinder is fully extended. Then, calculate the K-factor. Engineers call this the progression rate. A high K-factor means the spring becomes significantly stiffer as it compresses. Careful force balancing ensures smooth user operation. You want to avoid overwhelming resistance during manual adjustments.
Selecting the Actuator Ecosystem: How will the final user trigger the internal release valve? Select an appropriate remote release mechanism based on human ergonomics. Assess the user distance from the hidden cylinder. A direct metal lever works well for immediate proximity. Push-button setups suit handle-integrated controls perfectly. Bowden cable routing allows flexible actuation. Cables let you place the trigger far away from the actual cylinder location.
Safety and Compliance Verification: We must highlight a severe industry risk here. Poorly manufactured units threaten end-user safety directly. Procurement teams must demand absolute proof of pure nitrogen fills. Cheap manufacturers sometimes utilize standard compressed air to save money. Standard air introduces highly reactive oxygen into the high-pressure cylinder. High-pressure friction heats the internal cylinder grease quickly. Mixing pure oxygen and hot grease poses a catastrophic explosion risk. Always verify supplier safety certifications. Demand written inert gas guarantees before purchasing bulk orders.
Let us wrap up our technical evaluation of position control mechanisms. Incorporating a proper Controllable Gas Spring adds massive strategic value to your product designs. It significantly enhances both daily user ergonomics and long-term structural safety.
Always evaluate your project carefully to determine if you need rigid or elastic holding behavior.
Execute precise dimensional and stroke calculations to prevent mechanical binding.
Verify pure nitrogen usage rigorously to eliminate severe combustion risks.
Match the release actuator style to the specific ergonomic needs of your end user.
Do not leave your mechanism sizing to guesswork. Trial and error wastes money and delays production. Consult directly with an engineering specialist today. You can also utilize a digital sizing calculator. These digital tools help you map exact mathematical force requirements for your specific project.
A: Standard units provide continuous pushing or pulling force. They assist in lifting lids but cannot stop mid-stroke. Lockable units feature an internal valve system. Pressing a release pin opens this valve to allow movement. Releasing the pin closes the valve, freezing the stroke securely at any exact position you choose.
A: It depends on the specific model. Most factory-sealed units hold a fixed pressure and cannot be adjusted later. However, manufacturers do offer pressure-adjustable variants. These feature a special bleed valve. Installers can release small amounts of nitrogen to fine-tune the holding force on-site.
A: A high-quality unit typically lasts between 40,000 and 100,000 cycles. Lifespan depends heavily on internal seal integrity and environmental factors. Proper installation extends life significantly. You should mount the cylinder rod-down. This orientation keeps internal oil resting against the seals, ensuring constant lubrication.
A: They have strict operating limits. Most standard units operate safely between -20°C and 80°C. Extreme heat affects internal pressure due to Boyle's Law. As temperature rises, internal gas expands, increasing the output force. Exceeding maximum temperature ratings degrades the seals and risks catastrophic pressure failure.
