Have you ever struggled with a trunk that won’t stay open or a hood that slams shut? The issue often lies in the Auto Gas Spring, a crucial component for the smooth operation of many vehicle parts, including hoods, trunks, and tailgates. When these springs begin to fail, measuring them correctly for replacement becomes a key challenge.
If you’ve ever wondered, “How do I measure an Auto Gas Spring for replacement?” you’re not alone. Many vehicle owners and technicians face this issue. Incorrect measurements can lead to ordering the wrong part, causing performance problems and safety risks.
In this article, we’ll walk you through how to measure an Auto Gas Spring accurately for replacement, covering key dimensions and common mistakes to avoid. By the end, you’ll be equipped with the knowledge to replace your Auto Gas Spring with the right fit.

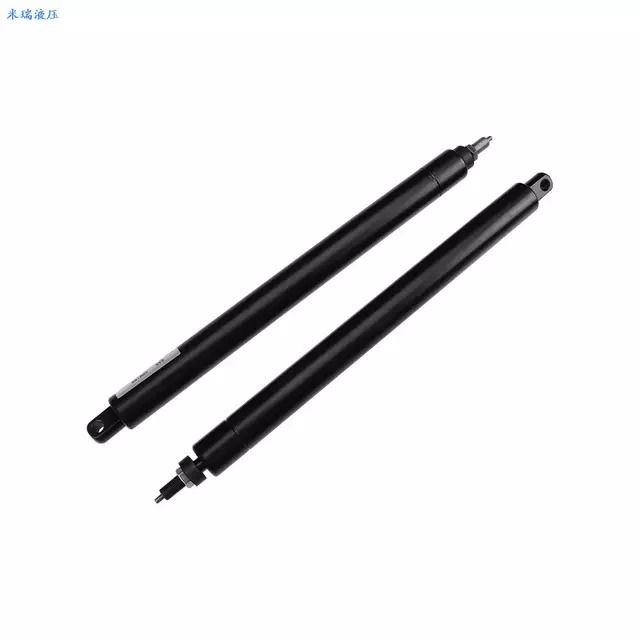

An Auto Gas Spring (also known as a gas strut) is a mechanical device that uses pressurized gas to provide support, assist movement, and control motion. Typically used in vehicle applications such as hoods, trunks, tailgates, and rear windows, these springs make it easier to open and close heavy panels smoothly. By storing nitrogen gas under pressure, the spring generates a lifting force that counteracts the weight of the panel or component, reducing the physical effort required to move it.
In essence, Auto Gas Springs function like shock absorbers for moving parts. They ensure that components open smoothly and stay in place when needed, providing both convenience and safety.
Auto Gas Springs are used in various vehicle applications, including:
● Hoods: Assisting in lifting and holding the hood open while performing engine maintenance.
● Trunks: Supporting the trunk lid to stay open, making it easier to load and unload.
● Tailgates: Ensuring smooth and safe operation for larger, heavier access panels.
● Rear Windows: Assisting in the opening and closing of rear windows, particularly in SUVs and hatchbacks.
● Storage Compartments: Providing support for vehicle storage areas or side panels.
Without the proper Auto Gas Spring, these components would be more difficult to operate, and the risk of injury or damage would increase.
Measuring an Auto Gas Spring accurately ensures that you order the right replacement part. Using a spring with incorrect dimensions or force ratings could lead to the component not functioning properly, creating unnecessary strain on the vehicle's hinges, brackets, and other components.
The primary function of Auto Gas Springs is to support heavy panels and prevent them from falling unexpectedly. If you install a gas spring that is too weak or too strong for the application, it could cause unsafe conditions, such as the lid or trunk not staying open or opening too abruptly.
When an Auto Gas Spring is properly measured and replaced, it can improve the overall performance of the vehicle. This results in smoother operation and a longer-lasting spring, reducing the need for future replacements and saving money in the long run.
Before measuring your Auto Gas Spring for replacement, it’s important to gather the right tools and take necessary precautions:
● Tape measure or caliper for accurate measurements
● Pen and notebook for taking notes
● Smartphone or camera to capture photos of the spring and installation for reference
● Gloves for safety and handling
● Ensure the vehicle is parked on a flat, stable surface.
● Fully support the hood, trunk, or tailgate with a prop or another assistant before removing the Auto Gas Spring.
● Never attempt to measure a spring while it is under load. Always make sure the component is securely supported.
To ensure you replace your Auto Gas Spring with the correct part, you’ll need to take accurate measurements. Below are the key dimensions to focus on:
The extended length is the full length of the Auto Gas Spring when it is fully extended. To measure this, use a tape measure or caliper to measure from the center of one mounting point to the center of the other when the spring is fully extended. This length determines the maximum reach of the spring.
The compressed length is the length of the Auto Gas Spring when it is fully compressed. Again, use a tape measure or caliper to measure from the center of one mounting point to the center of the other when the spring is fully compressed. This length ensures that the gas spring is able to fully close and provide support when not in use.
The stroke length is the difference between the extended and compressed lengths. It determines how much the spring can extend to assist the movement of the panel. The stroke length plays a crucial role in ensuring that the spring has enough travel to support the opening and closing motion effectively.
Formula for Stroke Length:
Stroke Length = Extended Length – Compressed Length
The tube diameter refers to the outer diameter of the gas spring's cylinder. To measure this, simply use a caliper to measure across the tube. This dimension ensures that the Auto Gas Spring fits properly into its mounting brackets.
The rod diameter refers to the diameter of the piston rod that extends and retracts inside the gas spring. Like the tube diameter, measuring the rod diameter ensures that the rod will fit securely into its mounting point and move smoothly.
Auto Gas Springs have different types of end fittings, including:
● Ball Joint: A spherical fitting that allows the spring to pivot.
● Eyelet: A round hole through which the spring is mounted with a bolt.
● Clevis: A U-shaped fitting often used for heavy-duty applications.
● Bracket-Mounted Ends: These are custom fittings designed for specific vehicle applications.
Measuring the end fittings ensures that the new spring will fit properly into the vehicle’s mounting points.
The force rating refers to the amount of lifting force the gas spring provides. It is typically expressed in Newtons (N). The force rating is often printed on the spring’s body and should match the requirements of the vehicle component it supports. If the rating is missing, you may need to consult the vehicle manufacturer or a professional to determine the correct force.
Before removing the old Auto Gas Spring, ensure that the panel (hood, trunk, tailgate, etc.) is securely supported. Use a rigid prop or another assistant to hold the panel in place.
Carefully remove the old gas spring by releasing the mounting clips or bolts that secure it. Take note of how the spring is installed, including its orientation and any special fittings.
With the gas spring removed, measure the full extended length from the center of one mounting point to the center of the other.
Measure the full compressed length of the gas spring, ensuring the spring is fully compressed before taking the measurement.
Subtract the compressed length from the extended length to determine the stroke length.
Use a caliper to measure both the tube and rod diameters, ensuring they match the dimensions of the original Auto Gas Spring.
Inspect the end fittings of the old Auto Gas Spring and measure them to ensure that the replacement spring has the same type and size of fittings.
Look for the force rating marked on the old gas spring. If it is missing, consult the vehicle manual or manufacturer to ensure that the correct lifting force is selected for the replacement.
Before ordering a replacement Auto Gas Spring, take photos of the old spring, note all measurements, and ensure the specifications are recorded clearly for reference.
When measuring the Auto Gas Spring, always measure center-to-center between the mounting points. Measuring overall length can lead to inaccurate results.
End fittings are just as important as the gas spring’s dimensions. Ensure that the replacement has the correct end fittings to match your vehicle's mounting points.
Always check the force rating to ensure that the new spring can support the weight of the component. Using a spring with the wrong force can lead to failure.
Never measure a spring while it is still installed, as it may lead to inaccurate results. Always remove the spring first.
If the Auto Gas Spring is part of a pair, replace both springs at the same time to ensure balanced support and functionality.
In conclusion, measuring your Auto Gas Spring correctly is vital for selecting the right replacement part. Accurate measurements ensure that the new spring will fit properly and provide the correct support for your vehicle's components. By following the steps outlined in this article, you can confidently replace your Auto Gas Spring and restore the smooth operation of your vehicle’s hoods, trunks, tailgates, and other components. If you are unsure about measurements or need a custom solution, don't hesitate to consult with a professional manufacturer like Maanshan Mirui Hydraulic Intelligent Manufacturing Co., Ltd.
A: If the label is missing, measure the spring’s extended length, compressed length, stroke, tube diameter, rod diameter, and end fitting type. You can then consult the vehicle’s manual or the manufacturer to confirm force requirements.
A: No, stroke length is the difference between the extended and compressed lengths. Overall length refers to the full length when the spring is extended.
A: No, it is important to match the force rating of the replacement Auto Gas Spring with the original. An incorrect force rating can result in malfunction or safety risks.
A: Yes, if two springs work together on the same panel, it is advisable to replace both to ensure even support and consistent performance.
A: Measure the fitting type carefully and compare it with the available options. If in doubt, contact a professional manufacturer like Maanshan Mirui Hydraulic Intelligent Manufacturing Co., Ltd for assistance.
